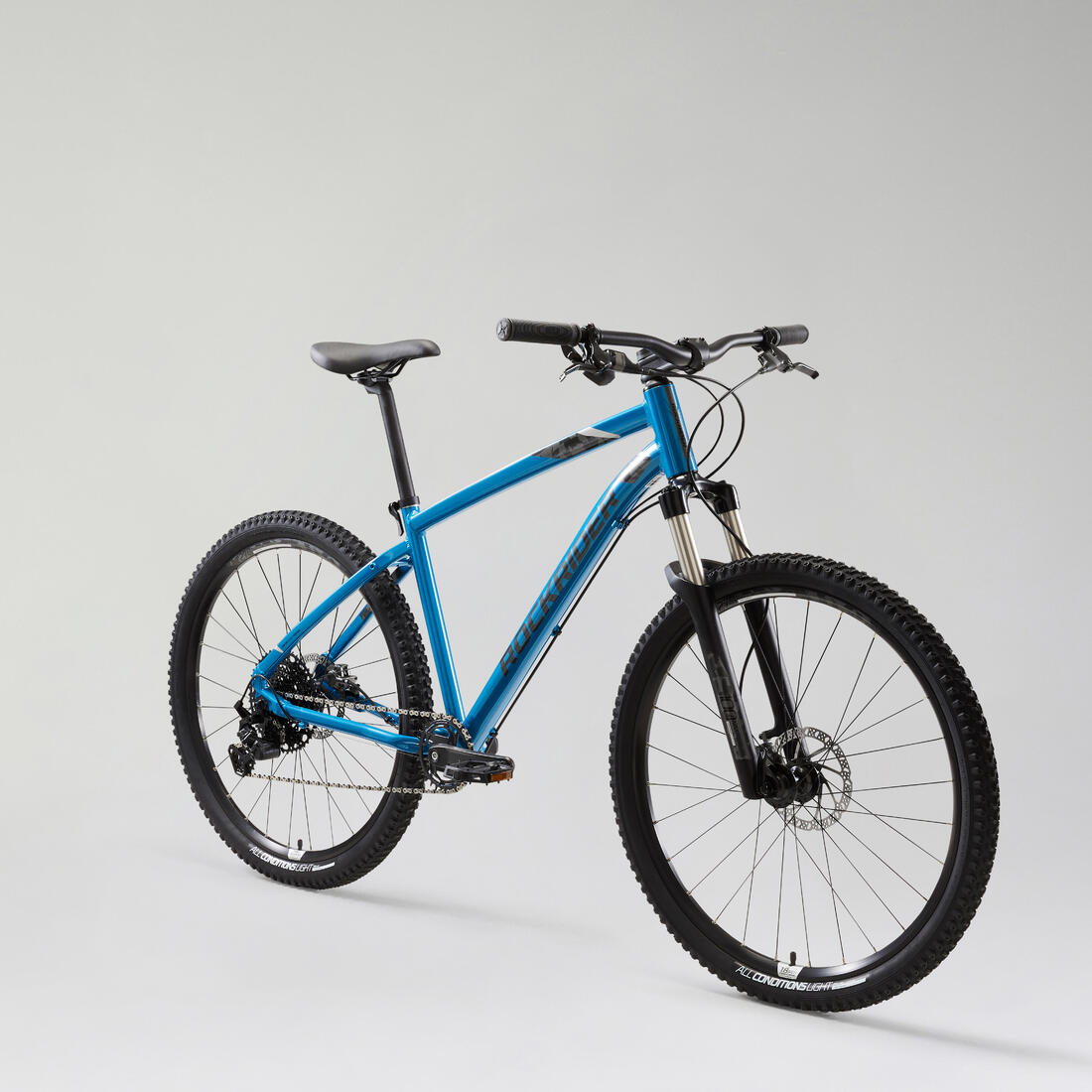

This 27.5" MTB is designed for MTB rides lasting 2 to 3 hours, all year round.
WHAT SIZE MOUNTAIN BIKE TO CHOOSE?
Several sizes available:
S: between 1.50m and 1.64m
M: between 1.65m and 1.74m
L: between 1.75m and 1.84m
XL: between 1.85 m and 2.00 m
If you are on the limit between 2 sizes:
Choose the smaller size for easier steering (easier to handle) and comfort (straighter back).
Choose the larger size for easier pedalling with a more stretched-out position (position more suited to performance).
UNISEX FRAME
With a heavily sloped top tube and a wide range of sizes (from S: 1.50 m to XL: 2 m),
The ST 540 V2 mountain bike frame is UNISEX.
The ST 540 V2 mountain bike also exists in a WOMEN'S variant V1: fitted seat, narrower handlebar, shorter stem, fork with a more flexible spring, and brake levers that are closer together.
As a woman, if you choose the men's model, we recommend at least purchasing the Women's Sport 500 saddle which is fitted to the female form.
A WORD FROM THE TEAM
We created this ST 540 V2 mountain bike entirely at our B'Twin Village (Lille, France) for mountain biking enthusiasts.
A comfortable, efficient mountain bike: more progressive, powerful hydraulic disc brakes, 100mm hydraulic fork to easily and sensitively ride over obstacles, and simple and high-performance single chainring...
MTBers have been involved at every stage of this bike's development process.

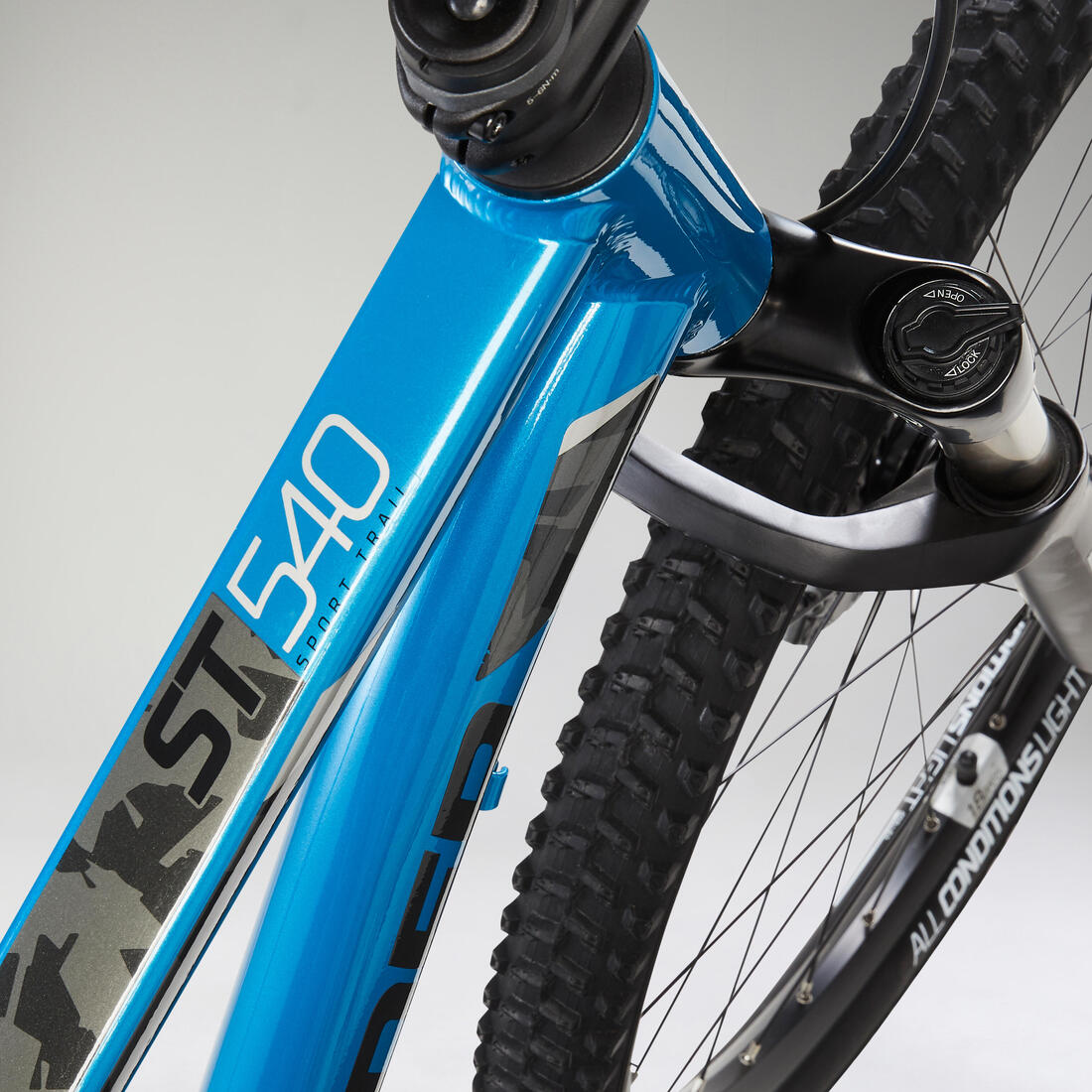

A COMFORTABLE, PLAYFUL FRAME

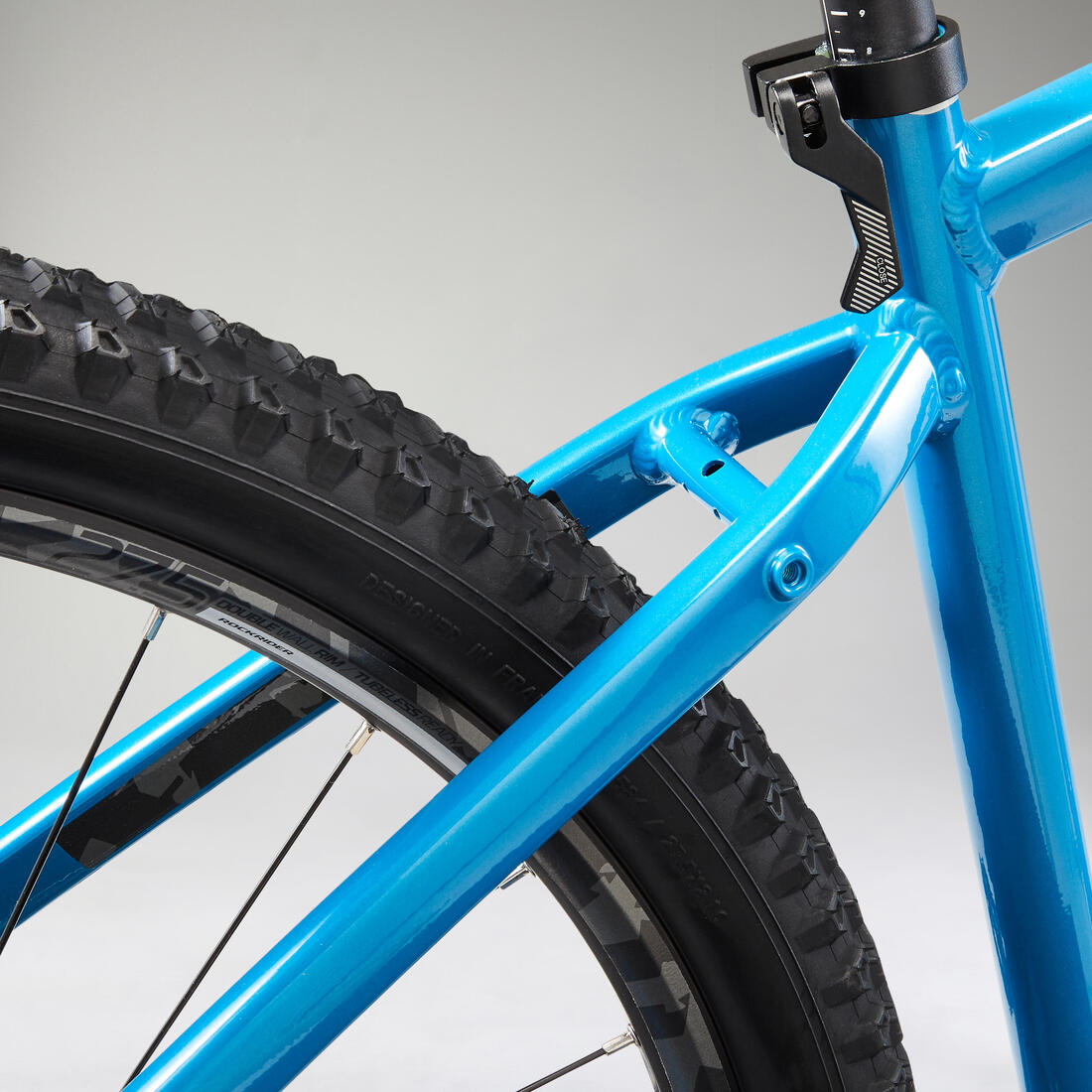

For less weight and more efficient pedalling, the Rockrider ST 540 V2 frame is made from 6061 aluminium (2.1 kg in size M). Our designers have designed and developed it so it is comfortable and easy to manoeuvre. We worked with the Sports Lab (our R&D centre) to keep the rider's back straight for a very comfortable mountain biking position.
The lower bottom bracket helps keep you more stable during turns.

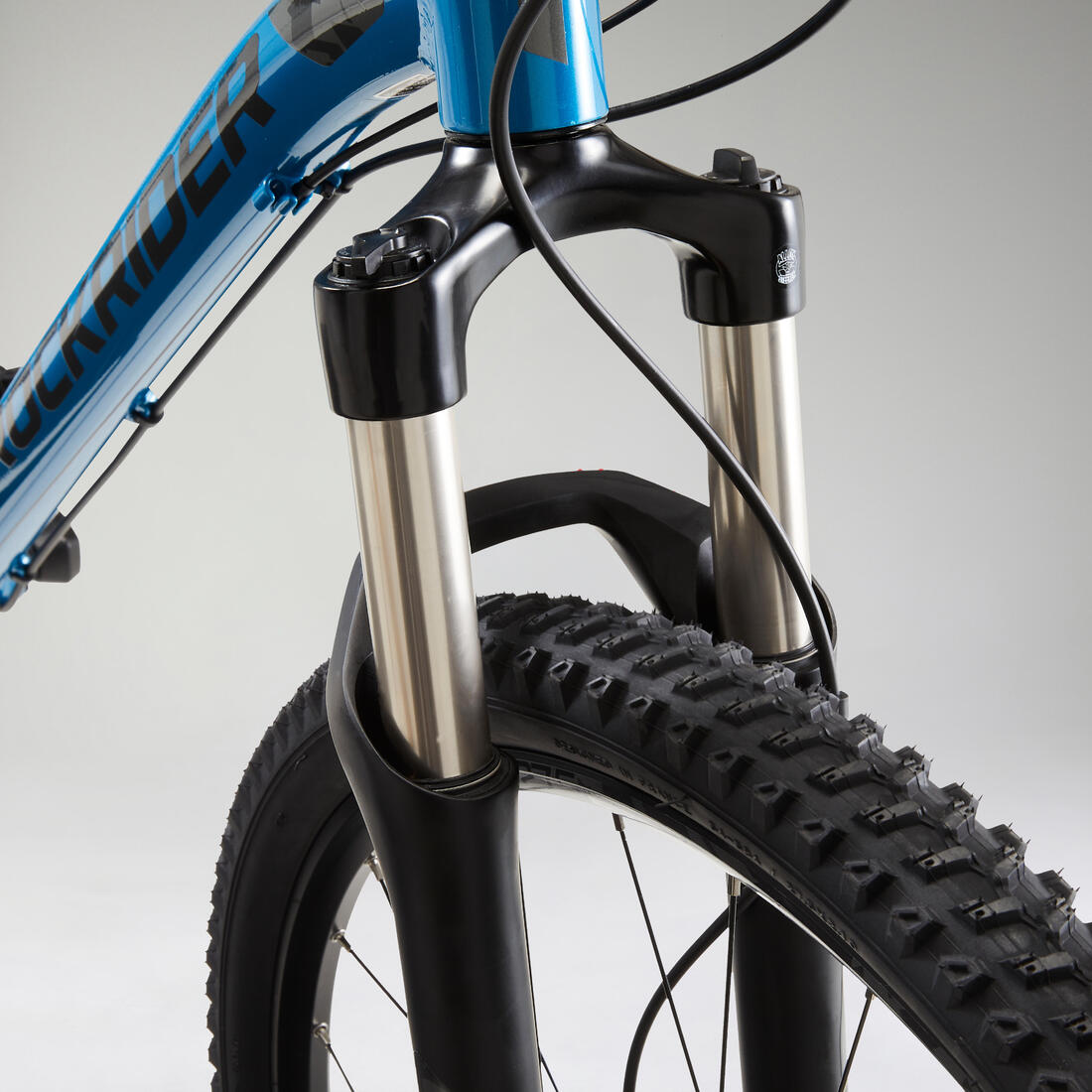

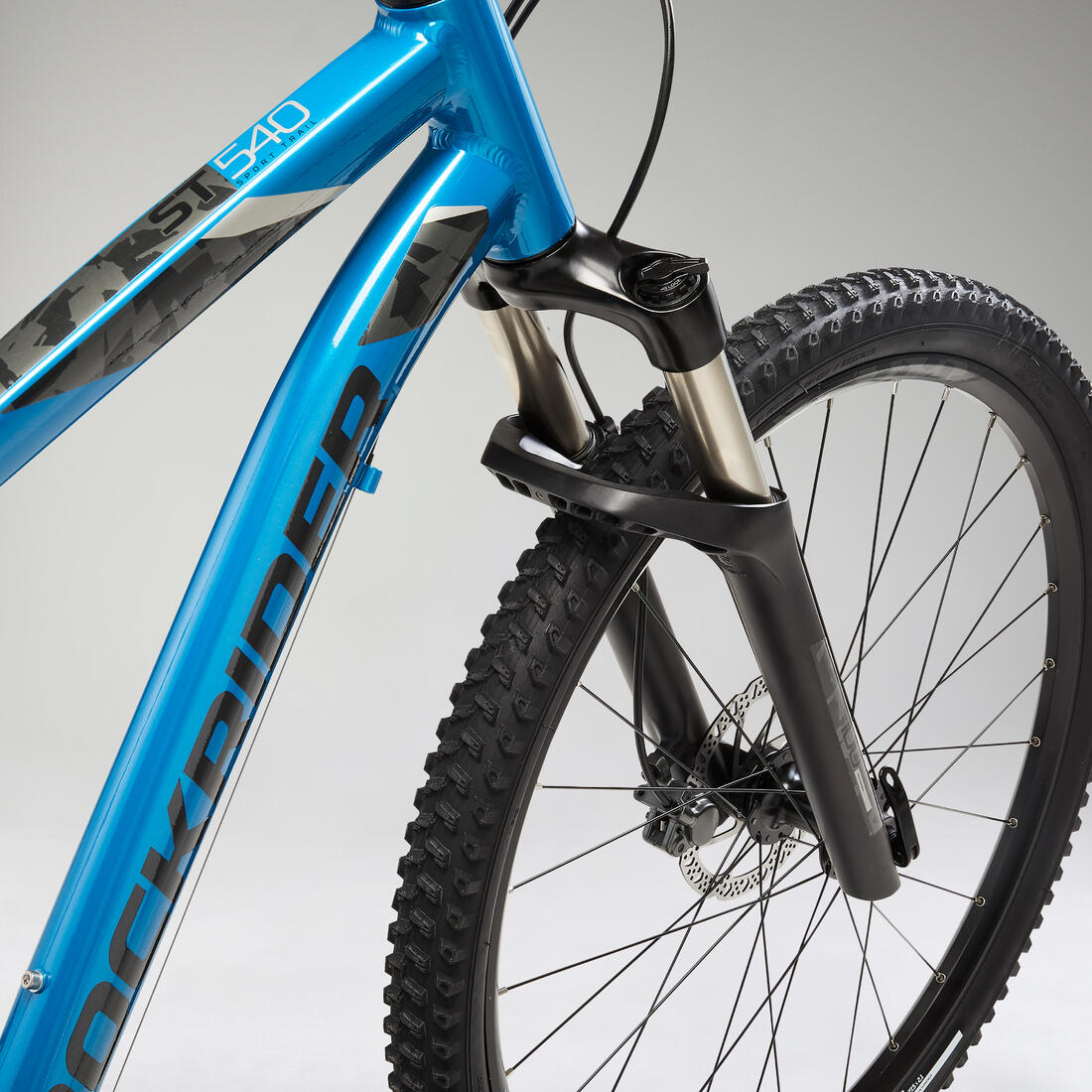

100 MM FRONT SUSPENSION
The hydraulic fork, with 100 mm travel, allows you to easily ride over more obstacles (roots, pebbles, stones, mud).
Its built-in lockout system helps to prevent bobbing and loss of speed on faster terrain.
REAR SUSPENSION: NONE
This mountain bike has no rear suspension.
This is a "semi-rigid" mountain bike. Compared to a full suspension mountain bike (with rear suspension), the advantages are clear: the mountain bike is lighter; less energy is lost on flatter ground. If however your primary concern is comfort and manoeuvrability, the ST 540 is available in a full suspension version with suspension at the rear.

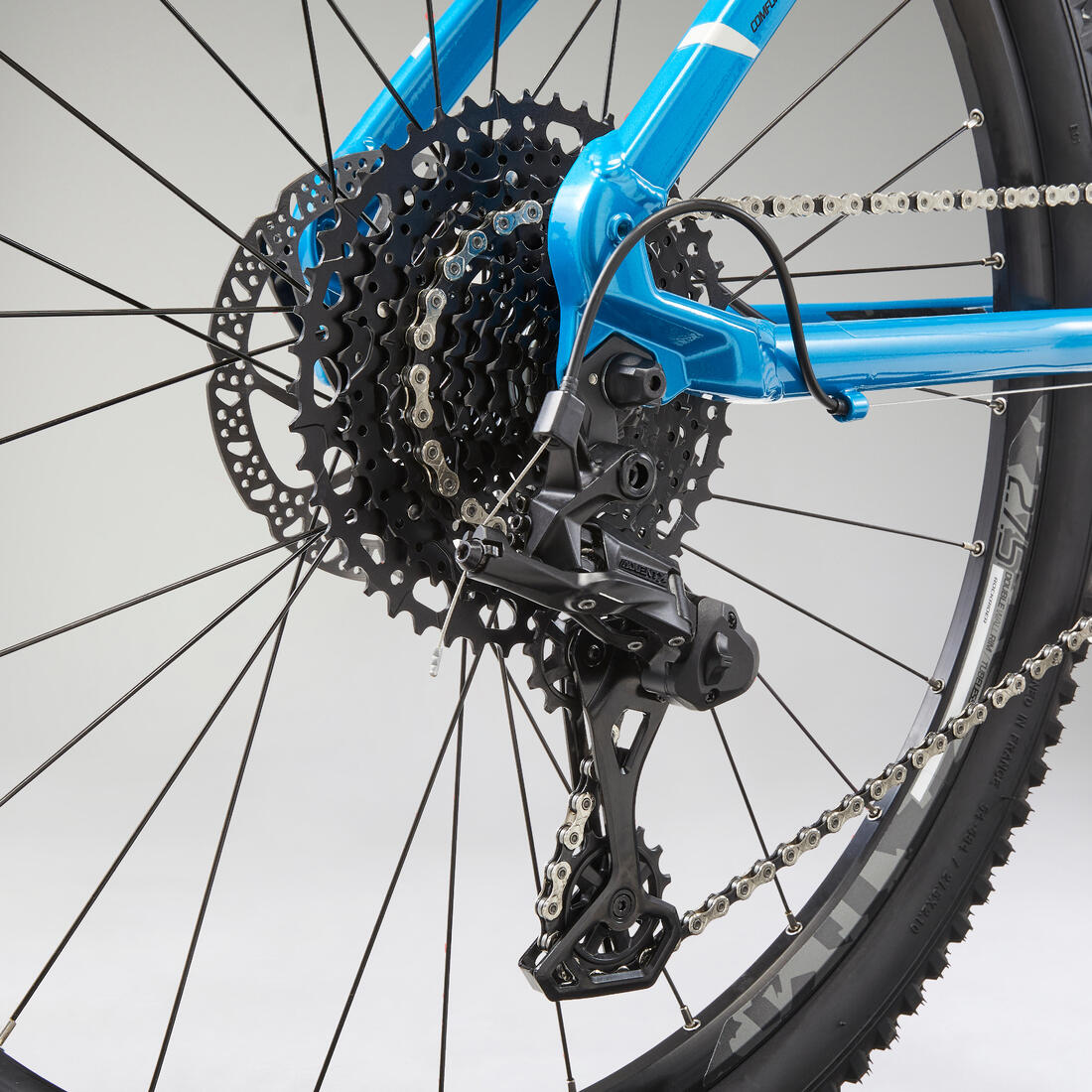

DERAILLEUR & DRIVE TRAIN: A SINGLE CHAINRING LIKE THE PROS!
Efficient and easy:
1 chainring and 10 speeds:
Accelerate on the flats and easily tackle the climbs. 1 single shifter on the handlebar: adapt your speed instantly as the terrain changes!

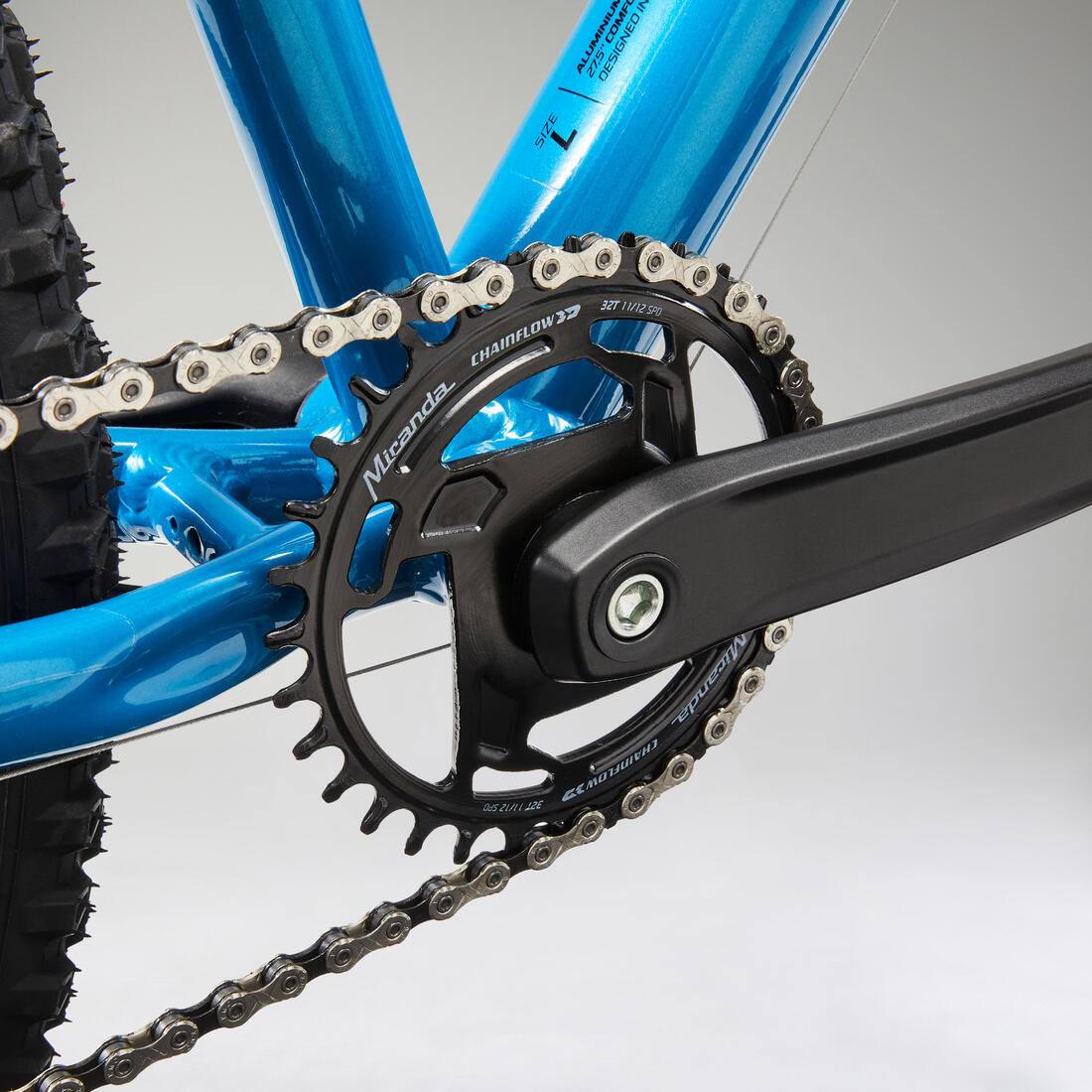

Details: -ROCKRIDER FC ATB 500 32-tooth single chainring
-MICROSHIFT ADVENTX 10-speed rear derailleur with long cage
-MICROSHIFT ADVENTX right shifter
-MICROSHIFT ADVENTX 10-cog cassette (11-48 teeth)
-KMC X10 chain

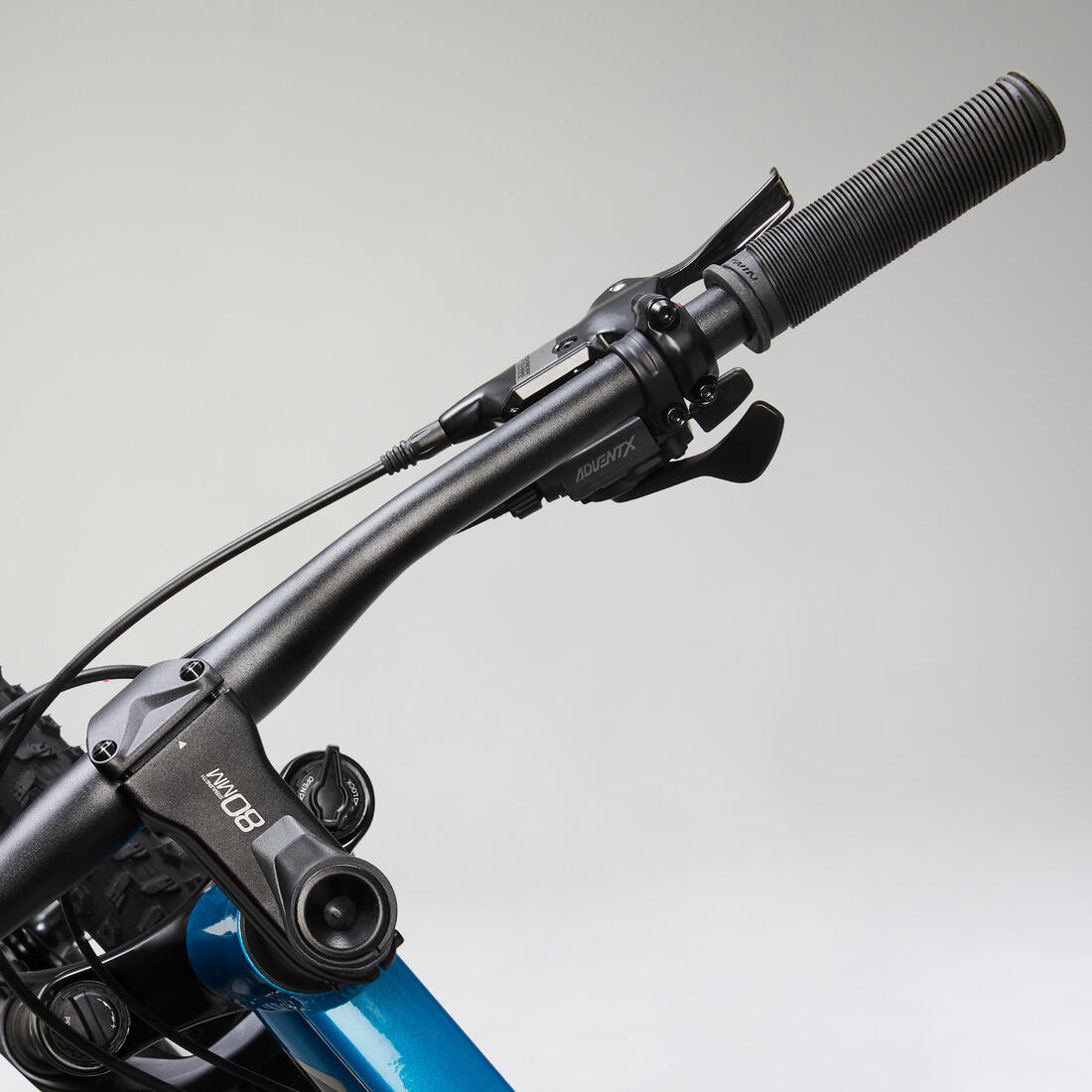

HANDLEBARS, STEM, GRIPS

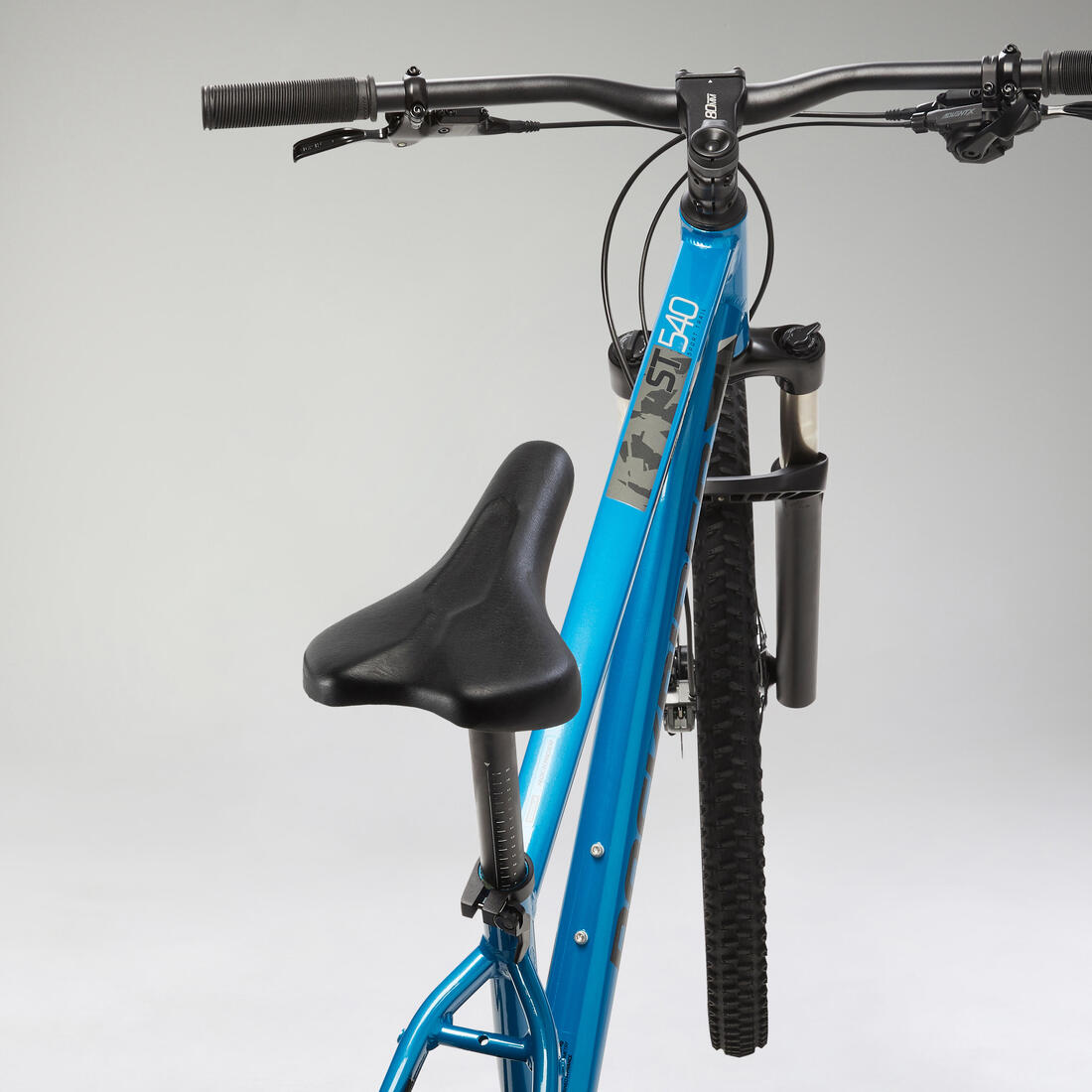

The adjustable stem height brings the ST 540 V2 bike's controls to your hands. The all-aluminium Rockrider stem is 70 mm (size S), 80 mm (size M/L), or 90 mm (size XL) and can be raised to 5 adjustment intervals: + 0mm, + 7.5mm, + 15mm, + 22.5mm, + 30mm.
In detail:
- 720mm oversize Rockrider Sport aluminium handlebar
- Rockrider Sport "soft touch" ergonomic grips for good grip and a comfortable feel.
Saddle
Our teams designed and created an exclusive ROCKRIDER ERGOFIT saddle. Designed for all hip widths, its hammock shape is very comfortable for long, athletic rides. The Flex 27.2mm diameter aluminium seatpost also contributes to its increased level of comfort.
Quick and easy tool-free adjustment of your saddle height using the adjustment lever on the seat post clamp.
HYDRAULIC DISC BRAKES
No matter what conditions you ride in (dry/wet), the Rockrider by Tektro 160 mm double hydraulic disc brakes will come through for you, even in the mud.
Hydraulic brakes deliver more powerful and progressive braking and require less effort applied to the brake levers.
The aluminium brake levers are easy to grip and precise.
27.5" WHEELS WITH DOUBLE-WALLED RIMS AND ALL-CONDITION TYRES
The aluminium wheels are effective and sturdy: 27.5" diameter and double-walled rims. Their diameter is the perfect balance between comfort and performance. With their 28 spokes, they are lightweight, stiff, and durable. The wide, ROCKRIDER ALL CONDITIONS (60 TPI) 27.5" x 2.1 tyres have side knobs designed for riding on all types of terrain (dry, wet, etc.).
Tubeless Ready 23 mm rims: SCHRADER valves, TUBELESS rim tape, TUBELESS tyres, and puncture-proof liquid to be added.
Platform pedals
The ST 540 V2 comes with Rockrider Flat platform pedals with a wider pedalling surface and more pronounced dots for better grip on the pedal.
EASILY TRANSPORT AND STORE YOUR MOUNTAIN BIKE
We added a quick release system for easily removing/reattaching the front wheel.
Our advice:
a bike rack is an easy way to transport your mountain bike without dirtying your car.
Accessories
Your ST 540 V2 mountain bike is supplied with a bell, lights, wheel reflectors and pedals.
The frame is compatible with:
-500 chainstay stand (ref. 8302792)
-100 bottle cage (ref. 8049106) and 500 bottle cage (ref. 8358133)
-Mountain bike mudguard set (ref. 8385291)
-100 saddle bag (ref. 8347394) and 500 saddle bag (ref. 8354448)
-500 pannier rack (ref. 8364376)
-100 frame child seat (ref. 8486913 and 8487125), whatever the size
COMFORT & SAFETY
Your bike's fittings (chain, derailleur, brakes, etc.) will move around over time.
Discover the effectiveness and playful side of the ST 540 V2 mountain bike with its 100mm hydraulic fork, hydraulic disc brakes, and the reactivity of the 10-speed single chainring.
